Product Summary

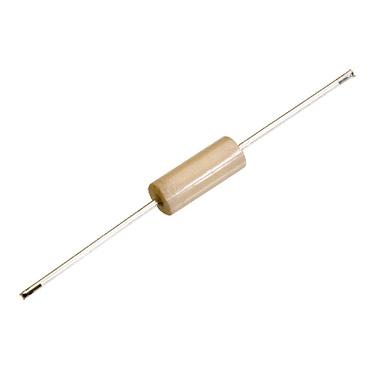

Molded Unshielded RF Coils


Parametrics

Physical Parameters
Inches Millimeters
Length 0.250 ± 0.010 6.35 ± 0.25
Diameter 0.095 ± 0.010 2.41 ± 0.25
Lead Size
AWG #24 TCW 0.020 ± 0.0015 0.508 ± 0.038
Lead Length 1.5 ± 0.12 38.1 ± 3.05
Current Rating at 90°C Ambient
LT4K 35°C Rise
LT10K 15°C Rise
Operating Temperature Range
LT4K –55°C to +125°C
LT10K –55°C to +105°C
Maximum Power Dissipation at 90°C
Phenolic: LT4K 0.21 W
Iron: LT10K 0.09 W
Ferrite: LT10K 0.073 W
Weight Max. (Grams) 0.3

Features

Military Specifications (1025 Series Only)
MS75083 (LT4K); MS75084 (LT10K); MS75085
(LT10K)

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

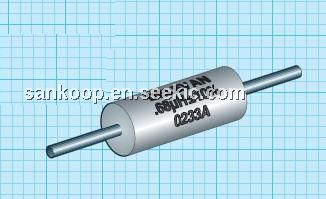

1025-20K
1025-20K
API Delevan
RF Inductors 1 uH
Data Sheet
0-100: $0.39
100-500: $0.34
500-1000: $0.31
1000-2000: $0.30

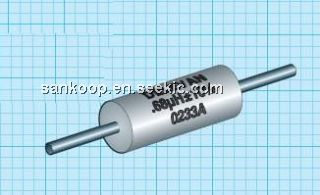

1025-20KTR
1025-20KTR
API Delevan
RF Inductors 1.0 UH 10%
Data Sheet
0-1: $0.75
1-1000: $0.47
1000-3000: $0.34
3000-10000: $0.26
